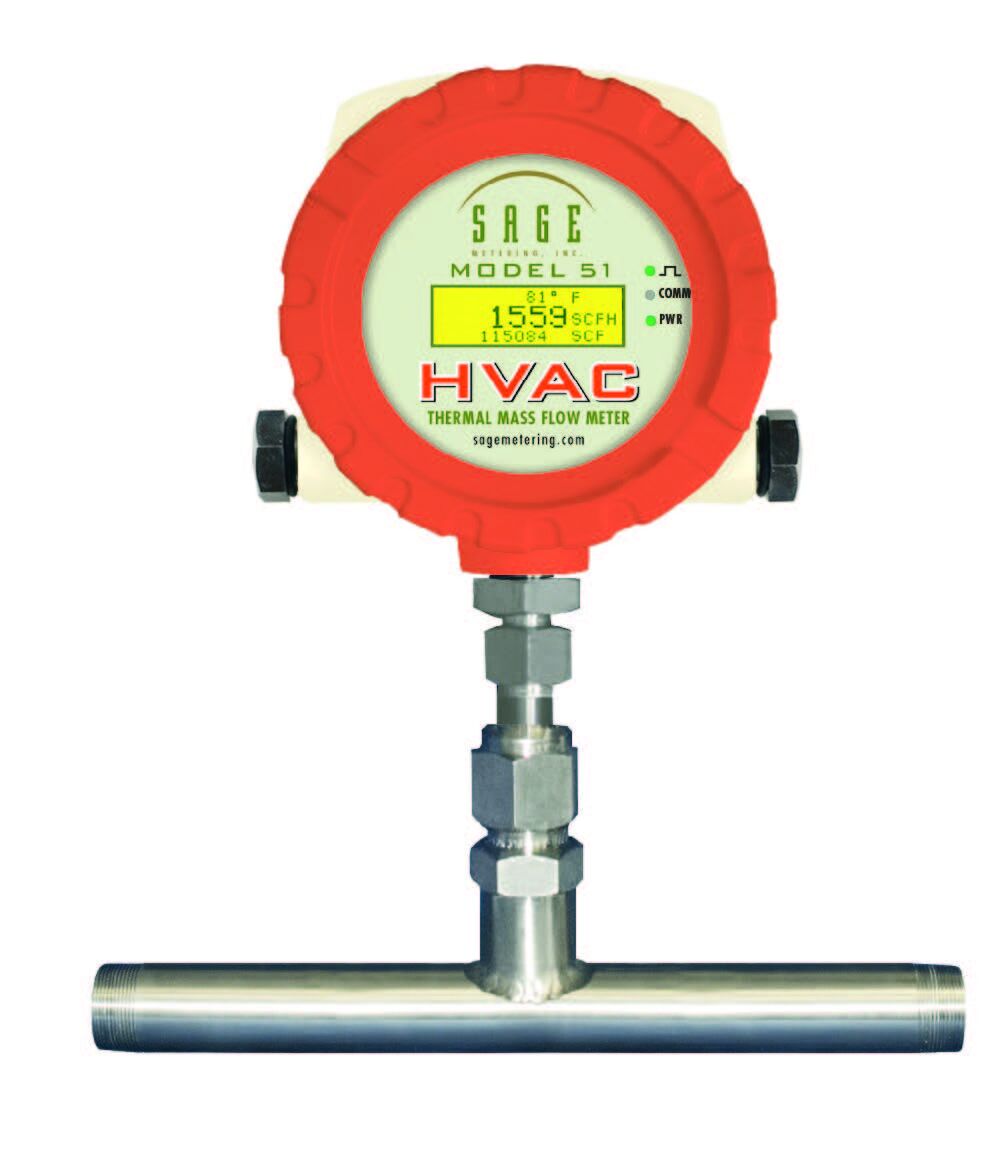

Sage Model 51 HVAC Thermal Mass Flow Meter

Sage Model 51 HVAC Thermal Mass Flow Meter

Name: Sage Model 51 HVAC Thermal Mass Flow Meter
SKU: 11993
Price: 1099.00 USD
Availability: InStock

Revolutionize Your HVAC Natural Gas Monitoring

Introducing the Sage Model 51 HVAC Series – the ultimate flow meter for precise natural gas flow measurement in commercial and institutional buildings. Whether you’re managing a sprawling university campus, a busy hospital, or a complex office building, our thermal mass flow meter delivers unparalleled accuracy and efficiency.

Request a Quote Now

Category: Flow Meters Tag: HVAC flow meter

Features & Benefits
Save Energy

HVAC Flow Meter Key Features:

Direct Mass Flow Measurement: No additional temperature or pressure transmitters required
High Accuracy: Within 1% of actual value, NIST calibrated with natural gas or air
Impressive Turndown: 100:1 ratio with resolution up to 1000:1
Low-End Sensitivity: Measures as low as 5 SFPM
Negligible Pressure Drop: Maintains energy efficiency
No Moving Parts: Ensures long-term reliability and accuracy

Perfect for HVAC Applications:

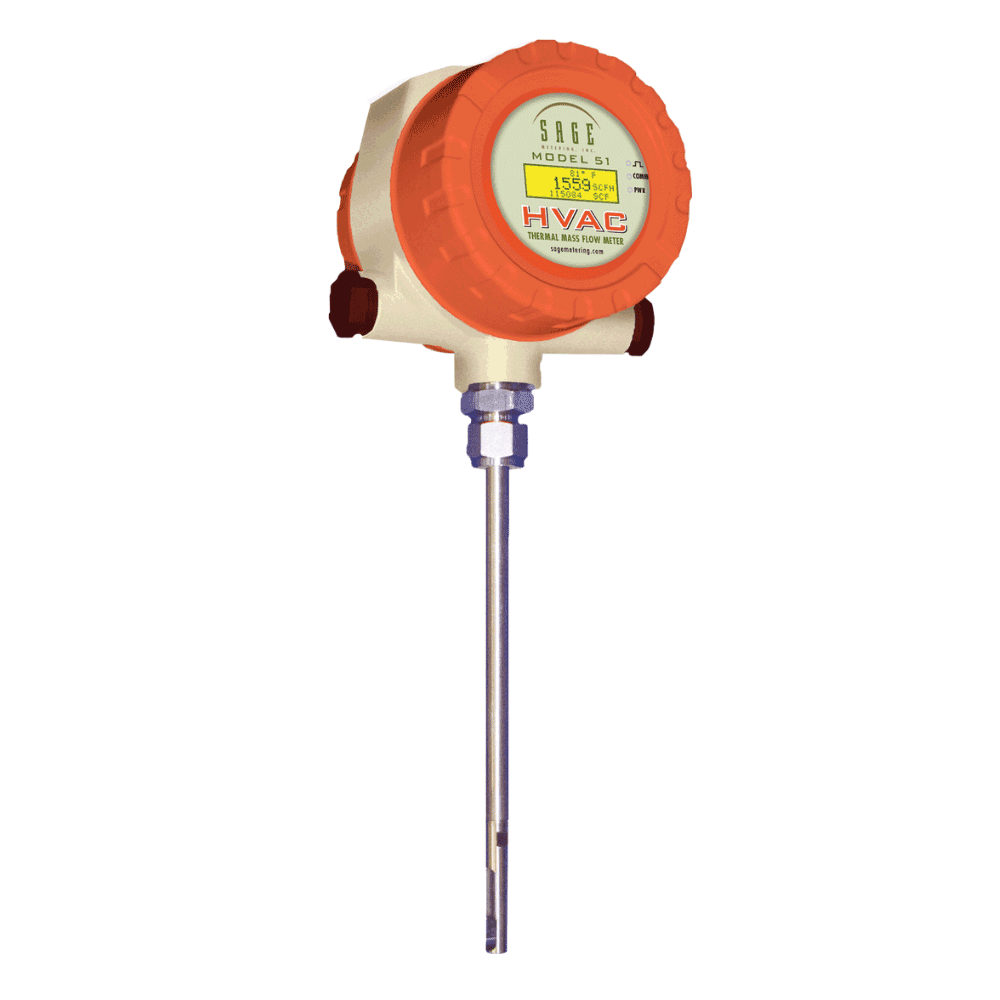

Inline or insertion-style options
Available with flow conditioner (minimizes pipe run requirements)
Easy installation and maintenance
High rangeability for both low- and high-flow scenarios
Facilitates LEED credits
Compact design (4-1/8″ dia. x 4-1/4″ deep)
CI D2 hazardous location rating

Advanced Communication:

BACnet communication standard (Modbus RTU optional)
Isolated 4-20 mA output for flow rate
Pulsed output for totalized flow
Optional dry contact relay module

Ideal for:

Mechanical contractors
Performance contractors
Campuses and universities
Energy service companies (ESCOs)

With the Sage Model 51 HVAC Series, you can maximize your HVAC system’s efficiency and reduce energy consumption. Experience the power of precise natural gas monitoring today!

Request a Quote Now

The Sage Choice: The Most Energy Efficient Thermal Mass Flowmeter

Sage meters are the most energy-efficient thermal mass flow meter, suggesting that saving energy begins by choosing the correct meter.

Why Waste Energy?

Saving energy should be on everyone’s mind. On a broad scale, the goal of all companies should be to reduce air pollution, cut global warming emissions, decrease dependence on coal and other fossil fuels, and move America and the world toward a cleaner, healthier energy future.

Save Energy with Sage Thermal Mass Meters

The Sage Choice: The Most Energy Efficient Thermal Mass Flow Meter — The most energy-efficient thermal flow meter is manufactured by Sage Metering; revealing that saving energy begins by making the *Sage* choice.

Sage Metering thermal mass flow meters have a three-step, three-minute in-situ calibration verification. The Sage meter draws a mere 10% of the power than other thermal meter manufacturers. That’s just 2.4 watts! If you are purchasing mass flow meters to help identify wasteful energy or improve efficiencies, why would you use a meter that requires ten times more energy than a Sage meter?

Saving Energy by Choosing the Right Meter

While saving energy on tools, may seem insignificant, with the industry selling approximately 65,000 thermal flowmeters a year ($200M), potentially requiring an additional 17+ watts to operate over a Sage meter, that could generate almost 1 million watts of wasted energy each year.

Sage Metering technology is all about saving energy, protecting our planet, and making extremely accurate and durable products.
